Direct Answer: Off-Grid Solar System Cost & Requirements
In 2026, a complete residential off-grid solar system costs between $8,500 and $28,000 depending on daily electrical consumption. A modest cabin system (3 to 5 kWh/day) costs $8,500 to $12,000, while an average energy-conscious residential home (15 to 25 kWh/day) ranges from $18,000 to $28,000. Equipment expenditure breaks down into battery storage (40% to 45%), solar panels (25%), pure sine wave inverters (15%), and balance-of-system safety hardware (15%).

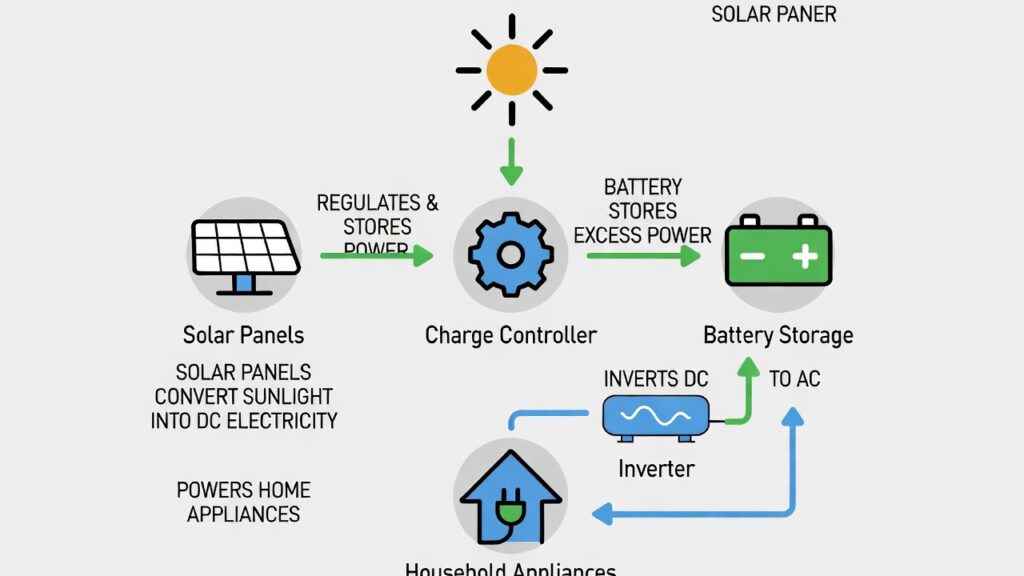

Investing in a stand-alone off-grid solar system represents complete severance from the utility electrical grid. Unlike standard grid-tied photovoltaic setups that shut down during grid outages to prevent islanding backfeed, an off-grid installation operates as an autonomous, self-sustaining microgrid. Designing a reliable off-grid power plant requires rigorous engineering accounting for peak summer generation, winter irradiance deficits, inverter tare losses, and surge inrush current multipliers.
Actionable Engineering Thesis: This comprehensive guide outlines real 2026 equipment pricing models, Sandia National Laboratories sizing methodologies, 48V DC bus architecture physics, and National Electrical Code (NEC Article 710) standards necessary to specify a robust, code-compliant off-grid solar installation without budget overruns.
“An off-grid system is essentially identical to a grid-tied solar setup, simply adding a few deep-cycle batteries to store extra daytime power.”
Grid-tied inverters rely on infinite utility grid stiffness to stabilize voltage frequency and absorb instantaneous inductive motor surges. In a stand-alone off-grid solar system, the inverter must generate its own pure 60 Hz sine wave, regulate bus voltage dynamically, and endure 300% to 500% motor starting surges without collapsing the AC bus.
1. 2026 Off-Grid Solar System Cost Breakdown by Component

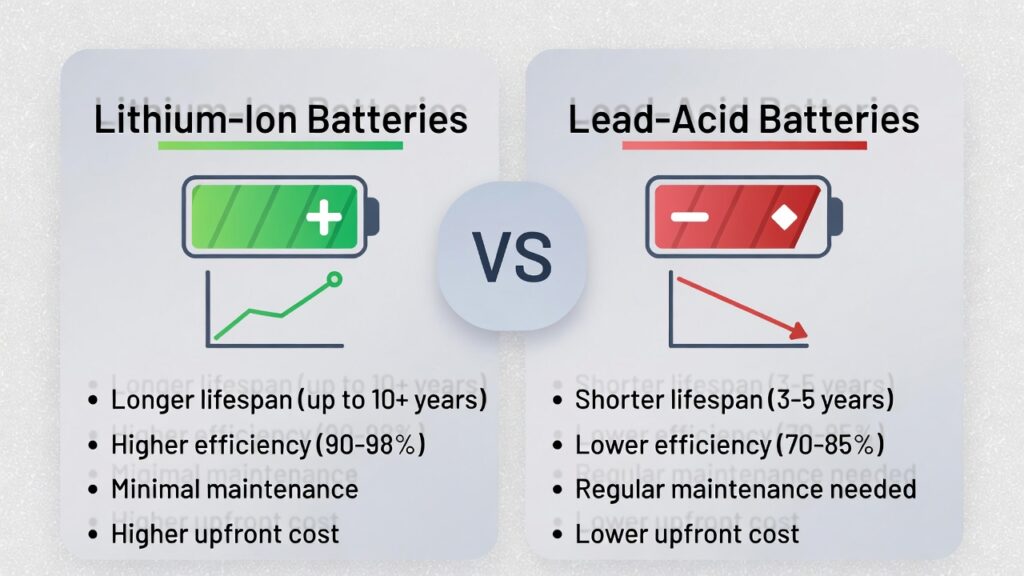

According to cost modeling published by the National Renewable Energy Laboratory (NREL) and the International Renewable Energy Agency (IRENA), battery storage and balance of system (BOS) components represent over 60% of total off-grid capital expenditure. While photovoltaic module prices have stabilized near historical lows ($0.65 to $0.95 per watt for Tier-1 monocrystalline panels), energy storage and heavy electrical switchgear dictate overall system budget.
The following table details realistic 2026 component hardware costs across three standard off-grid residential capacity tiers:
| System Component | Small Cabin (3-5 kWh/day) | Medium Home (12-18 kWh/day) | Full Residence (25-35 kWh/day) |
|---|---|---|---|
| Solar PV Array (Tier-1 Monocrystalline) | $1,200 – $1,800 (1.5 kW – 2.0 kW) | $3,600 – $5,400 (4.5 kW – 6.5 kW) | $8,000 – $11,500 (10 kW – 14 kW) |
| Battery Storage (48V LiFePO4 Server Rack) | $2,400 – $3,500 (5.1 kWh – 10.2 kWh) | $6,500 – $9,500 (20 kWh – 30 kWh) | $12,000 – $17,000 (45 kWh – 60 kWh) |
| Inverter / Charger (Pure Sine Wave Split-Phase) | $1,100 – $1,600 (3 kW – 4 kW 120V) | $2,200 – $3,500 (6 kW – 8 kW 120/240V) | $4,500 – $7,000 (12 kW – 16 kW Dual Stack) |
| MPPT Solar Charge Controllers (if separate) | Integrated in Inverter | Integrated or $600 – $1,200 | $1,200 – $2,400 (High-Voltage Dual) |
| Balance of System (BOS: Wire, Fuses, Disconnects) | $800 – $1,400 | $1,800 – $2,800 | $3,200 – $4,800 |
| Racking & Structural Mounting (Ground / Roof) | $500 – $900 | $1,200 – $2,200 | $2,400 – $4,200 |
| Total Turnkey Hardware Cost (DIY) | $6,000 – $9,200 | $15,300 – $24,600 | $31,300 – $48,900 |
Note: If hiring a licensed NABCEP-certified solar electrical contractor, labor, permitting, and engineering stamps typically add $4,000 to $9,000 to the total installed project price (see our detailed price breakdown in solar panel installation cost).
Never overlook continuous inverter standby tare loss when budgeting equipment. Large split-phase 6 kW to 12 kW off-grid inverters consume between 45W and 90W continuously just maintaining their internal oscillator and transformer cores. Over 24 hours, this represents 1.08 kWh to 2.16 kWh of parasitic consumption. Sizing calculations must add this tare loss directly into your base daily load profile.

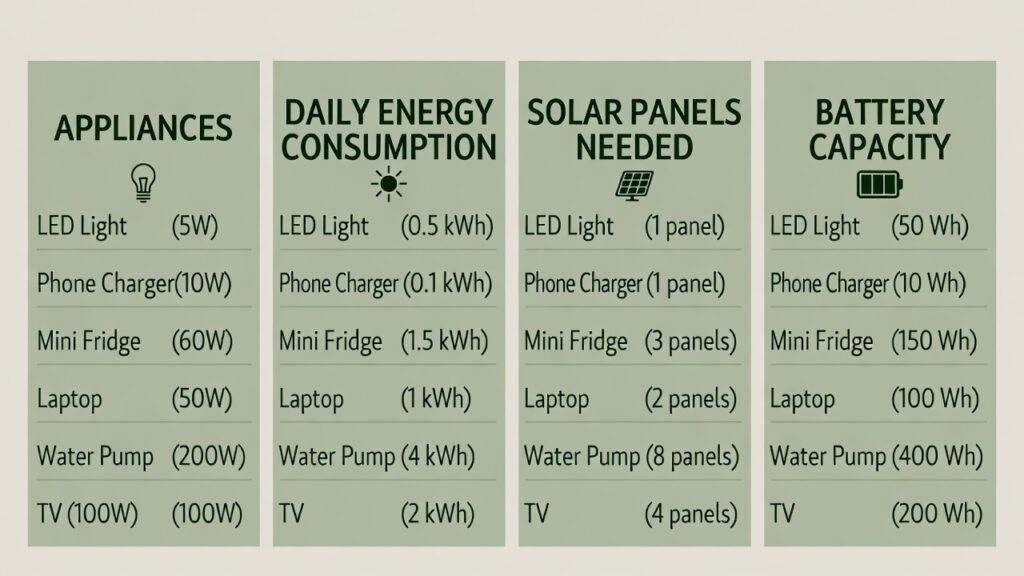

2. Core Sizing Physics: The Daily Load Audit & Array-to-Load Ratio (ALR)
Designing a reliable off-grid solar system requires calculating two distinct energy boundaries: cumulative daily energy capacity (in kilowatt-hours) and peak instantaneous power demand (in kilowatts). Sizing errors consistently stem from underestimating seasonal solar irradiance drop-offs.

To determine total photovoltaic array wattage, engineers utilize the standardized stand-alone sizing formula developed by Sandia National Laboratories (Report SAND87-2379):
Where key sizing parameters correspond to empirical field operating boundaries:
- Daily Consumption (Wh): The exact cumulative watt-hours drawn by all AC and DC circuits over 24 hours, including inverter tare drain.
- Array-to-Load Ratio (ALR): The over-sizing multiplier required to guarantee battery recharge during intermittent cloudy periods. A balanced system requires an ALR of 1.25 to 1.35 during summer, but must increase to 1.8 to 2.2 for winter autonomy.
- Peak Sun Hours (PSH): The solar irradiance equivalent of 1,000 W/m² available at your specific geographic latitude and tilt angle. In the continental US, average summer PSH ranges from 5.0 to 6.5 hours, dropping to 2.0 to 3.5 hours in December and January.
- ηsystem (System Efficiency Factor): Cumulative thermodynamic and conversion deratings, including solar panel thermal coefficient losses (typically -0.35%/°C above 25°C), soiling losses (3% to 5%), wire resistance voltage drop (2%), and MPPT charge controller tracking efficiency (98%). The industry benchmark factor is 0.78 to 0.82.
For detailed battery storage sizing formulas, reference our companion engineering guide: Home Solar Battery Calculator: Size Your Storage Correctly.
Automate Your Off-Grid System Sizing
Skip manual mathematical derivations. Calculate your exact solar array wattage, battery storage capacity, and inverter size in under 60 seconds.
3. System Voltage Architecture: Why 48V Is Mandatory for Off-Grid Homes
One of the most consequential engineering decisions in off-grid design is selecting battery bank nominal voltage: 12V, 24V, or 48V. While 12V systems remain acceptable for small campervans or single 12V DC bilge pumps, they are physically unsuitable for permanent residential loads, as proven in our 12V vs 24V vs 48V solar systems comparison.

The mathematical governing principle is derived directly from Ohm’s Law and Joule’s First Law of electrical heating:
Conductor Power Loss (Ploss) = I2 × R
Consider an instantaneous 4,000-watt residential load (e.g., a well pump cycling on while a refrigerator compressor runs):
- At 12 Volts: Current = 4,000W ÷ 12V = 333.3 Amperes. Sustaining 333 Amps requires parallel 4/0 AWG welding cables, massive 400A fuses, and suffers extreme thermal heating and voltage sag.
- At 24 Volts: Current = 4,000W ÷ 24V = 166.7 Amperes. Requires single 2/0 AWG copper conductors with moderate thermal dissipation.
- At 48 Volts: Current = 4,000W ÷ 48V = 83.3 Amperes. An 83 Amp circuit safely utilizes standard #4 AWG copper wire, drastically reduces copper conductor expenditure, and experiences one-sixteenth (1/16th) the resistive heat dissipation of a 12V system.
Consequently, all residential off-grid power systems demanding more than 2,000 continuous watts must be built strictly on a 48V nominal DC bus architecture.
4. Interactive Off-Grid Sizing & Cost Estimator
Use this interactive engineering calculator to model your required solar panel array wattage, 48V LiFePO4 battery capacity, minimum inverter rating, and turnkey equipment budget based on your daily energy consumption and solar resource:
Renogy 48V 3500W Pure Sine Wave Off-Grid Inverter Charger
An all-in-one stand-alone power conversion center integrating an 80A MPPT solar charge controller, a pure sine wave 120V inverter with 7,000W surge capacity, and an integrated AC generator transfer charger. Ideal foundation for 48V cabin and residential setups.
5. Electrical Safety Standards: NEC Article 710 for Stand-Alone Power Systems
Wiring an autonomous power plant requires compliance with National Electrical Code (NEC) standards specifically written for off-grid infrastructure. Key regulatory mandates include:

- NEC 710.15 (Sizing of Inverter Output Circuit): Stand-alone inverters must have continuous power ratings capable of handling the largest single connected branch circuit load plus the total running loads of all non-coincident appliances.
- Single Neutral-to-Ground Bonding (NEC 250): In a stand-alone off-grid system, the AC neutral conductor must be bonded to the Equipment Grounding Conductor (EGC) and grounding electrode at exactly one central point (the main distribution panel or internal to the primary inverter). Having secondary bonds downstream creates hazardous neutral return currents through equipment chassis.
- DC Overcurrent Protection (NEC 706.30 / NEC 710.15): Battery banks must feature high interrupt rating (AIC) protection immediately adjacent to the positive battery terminal. Modern Lithium Iron Phosphate (LiFePO4) banks deliver prospective short-circuit currents exceeding 10,000 to 20,000 Amps. Standard automotive or ANL fuses will vaporize or weld closed; only Class-T fuses (rated at 20,000 AIC DC) satisfy electrical safety codes.
When connecting a portable backup generator to an off-grid inverter AC input, verify whether the generator has a bonded or floating neutral. If the generator neutral is internally bonded to its frame while your off-grid subpanel also features a neutral-ground bond, you create an illegal dual-bond ground loop that trips GFCI breakers and electrifies metal conduit. For stand-alone off-grid operation, portable generators must have their internal neutral bond disconnected (floating neutral).
6. 5-Step Field SOP Commissioning Checklist
Before energizing your off-grid power plant, follow this standardized 5-step Standard Operating Procedure (SOP) to prevent catastrophic equipment damage from reverse polarity or capacitor inrush arcs:
- Mechanical Torque & Conductor Verification: Using a calibrated torque wrench, verify all battery terminal studs, inverter DC lugs, and breaker clamps meet manufacturer torque specifications (typically 8 to 12 N·m for M8 lithium terminals). Loose terminal connections create high-resistance hotspots capable of thermal ignition under 100A continuous draw.
- Insulation Resistance & Continuity Testing: Verify with a digital multimeter that no short-circuit exists between positive DC busbars and ground chassis. Measure resistance across the unpowered DC input terminals of the inverter; verify infinite open-circuit resistance to enclosure earth ground.
- Pre-Charging Inverter Capacitors: Never connect a live 48V battery directly to an uncharged off-grid inverter without pre-charging. Large internal electrolytic filter capacitors draw hundreds of amperes of instantaneous inrush current, eroding breaker contact points or tripping battery BMS protection. Pre-charge through a 25-ohm to 50-ohm 50W wirewound resistor for 10 seconds until DC voltage reaches bus potential before closing the main disconnect.
- No-Load Inverter Energization & Voltage Waveform Check: Close the battery Class-T breaker and activate the inverter power switch under zero connected AC load. Using a true-RMS digital multimeter, measure output across Line-1 to Neutral (120V ±2%) and Line-to-Line (240V ±2% on split-phase systems). Verify 60.0 Hz output frequency.
- PV Array Connection & Step-Load Commissioning: Measure PV string open-circuit voltage (Voc) under direct sunlight to ensure it remains strictly within the MPPT charge controller's operational voltage window (accounting for cold-weather voltage spikes). Close the PV DC disconnect, confirm active MPPT solar harvest, and apply incremental AC loads (25%, 50%, 100%) while observing battery thermal sensors and bus voltage stability.
