Direct Engineering Answer:

A Class B campervan solar installation typically accommodates 300W to 500W of rigid rooftop solar panels due to space constraints from roof ventilation fans and air conditioning cowlings. To achieve true off-grid self-reliance, pair the solar array with a 200Ah to 400Ah 12V LiFePO4 battery bank (2.56 to 5.12 kWh) (verify exact cell capacity and cold-weather reserve margins in our solar battery calculator) and a 30A to 60A DC-to-DC alternator charger that rapidly recharges the house bank while driving, following the dual-source charging principles outlined in our off-grid solar for RVs and campervans guide.

Engineering a solar power installation on a Class B campervan (whether built on a Mercedes-Benz Sprinter, Ford Transit, or Ram ProMaster chassis) is a precision exercise in spatial allocation and electrical safety. A Class B motorhome contains high-density residential living amenitiesβ€”12V refrigeration, induction cooking, ventilation fans, LED lighting, and off-grid internetβ€”packed into a compact vehicular envelope that is constantly exposed to road vibration and aerodynamic drag. Sizing these components accurately using our free off-grid solar calculator prevents both underpowered electrical systems and roof overloading.

Actionable Engineering Thesis: Successful Class B solar planning requires designing around factory roof mounting points, maintaining convective cooling gaps beneath solar panels, integrating multi-stage DC-to-DC alternator charging to eliminate generator reliance, and housing lithium batteries inside the climate-controlled cabin to prevent sub-freezing charge degradation.

Common DIY Class B Fallacy:

“My campervan has a smart alternator rated at 220 amps, so I can just wire a simple mechanical split-charge relay from the engine battery to charge my lithium house bank.”

Rigorous Engineering Reality:

Lithium batteries have near-zero internal impedance. Connecting an empty LiFePO4 bank directly to an alternator through a dumb relay will cause the lithium bank to pull 150A+ at low engine idle, rapidly overheating the alternator stator windings until it burns out. Furthermore, modern Euro 6 smart alternators drop voltage to 12.6V while cruising, which completely stops charging. A regulated DC-to-DC charger is mandatory.

1. Chassis-Specific Roof Geometry: Sprinter vs Transit vs ProMaster

Before purchasing mounting brackets or solar panels, builders must evaluate the specific physical and structural constraints of their vehicle chassis (as detailed in our comprehensive guide to van life solar system setups):

Chassis Platform Factory Roof Mounting System Typical Roof Usable Width Maximum Practical Rigid Solar Critical Installation Vulnerability
Mercedes-Benz Sprinter (144″ / 170″) OEM Factory C-Channels (Roof Tracks) 54 to 56 inches between rails 400W – 600W (Rigid) Deep roof corrugation ridges; requires rubber leveling pads
Ford Transit (148″ / 148″ Ext) Threaded M8 Factory Anchor Points 52 to 55 inches 350W – 550W (Rigid) Curved front cab roofline requires aerodynamic wind fairing
Ram ProMaster (136″ / 159″ / 159″ Ext) Factory Roof Pin Studs (No drilling needed) 60 to 62 inches (Widest roof) 450W – 700W (Rigid) Thinner roof sheet metal; requires load-distributing bracket feet

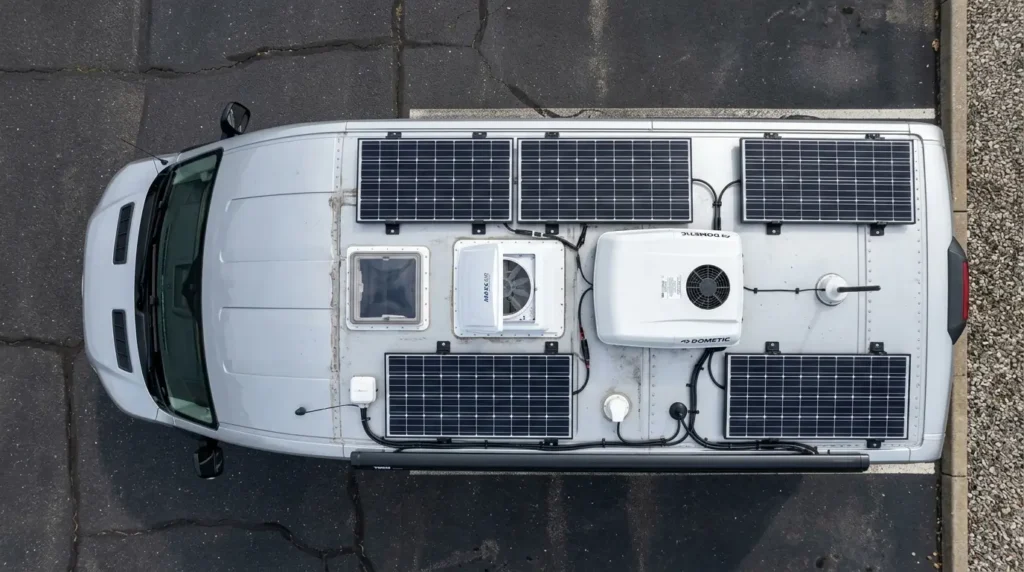

Campervan roof layout with low-profile monocrystalline solar panel and vehicle roof vent clearance
Figure 1: Class B campervan roof showing low-profile monocrystalline solar modules mounted to aluminum roof crossbars, maintaining safe clearance from ventilation fans. Source: Wikimedia Commons. License: CC BY-SA 4.0.

2. Sizing Class B Campervan Electrical Loads

A functional Class B campervan electrical budget must account for both steady baseline 12V DC consumers and intermittent high-wattage 120V AC cooking or heating appliances:

  • 12V DC Compressor Fridge (65L to 90L): Draws 3.2A to 4.2A while the compressor runs. In 25°C (77°F) ambient temperatures, a 40% duty cycle consumes 380 Wh to 480 Wh daily (32 to 40 Ah @ 12V).
  • MaxxFan Deluxe Ventilation Fan: Operating at speed 3 or 4 pulls 1.5A to 1.8A. Running 12 hours daily consumes 230 Wh to 280 Wh (19 to 23 Ah @ 12V).
  • Diesel / Gasoline Parking Air Heater (Webasto / Espar): Draws only 1.2A running, but pulls a 10A to 12A glow plug spike during ignition. Eight hours of overnight heating consumes 160 Wh (13.5 Ah @ 12V).
  • 120V AC Portable Induction Cooktop: Operating at 1,200W for 20 minutes to boil water and prepare dinner consumes 400 Wh (roughly 33 Ah @ 12V through an inverter).
  • Starlink Satellite Terminal: A Starlink Mini pulls 25W–40W. Operating 6 hours daily consumes 180 Wh to 240 Wh (15 to 20 Ah @ 12V).
  • Total Daily Baseline: A comfortable full-time Class B travel routine consumes between 1,400 Wh and 2,100 Wh per day (115 to 175 Ah @ 12V).
Field Engineering Insight: The Inverter Standby Parasite

Leaving a 2,000W or 3,000W pure sine wave inverter powered ON 24 hours a day consumes between 1.5A and 2.5A in idle standby tare loss. That equals 450 Wh to 720 Wh per dayβ€”literally burning 25% of your total campervan battery capacity just to power an idle transformer! Always install a dedicated remote inverter switch on your galley wall and turn the inverter OFF when not actively cooking or charging.

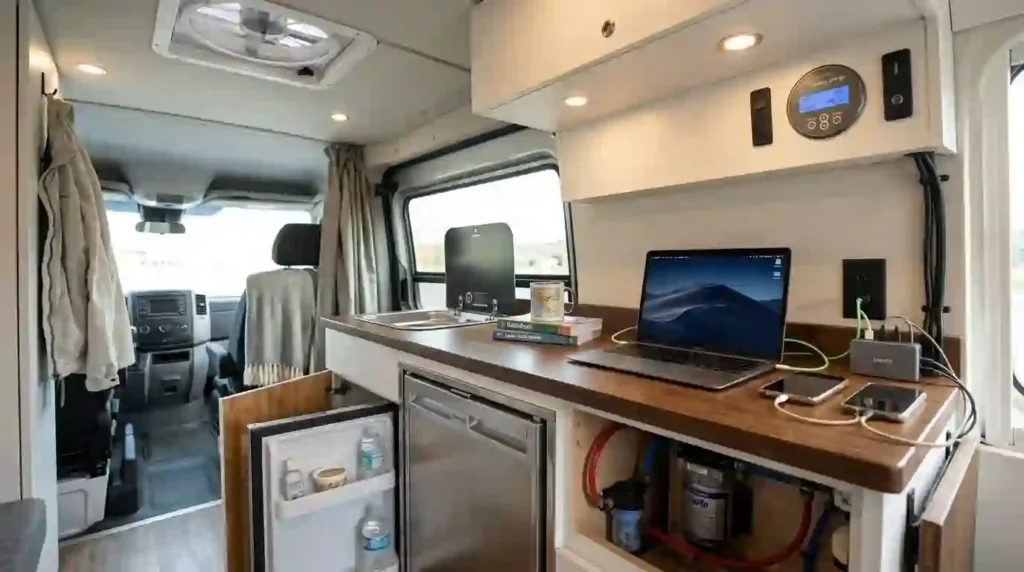

Campervan interior living space showing compact 12V galley cabinetry and LED lighting
Figure 2: Compact campervan interior living space showcasing efficient 12V DC native appliances, LED illumination, and integrated electrical controls. Source: Wikimedia Commons. License: CC BY-SA 4.0.

3. Mitigating Rooftop Shadow and Airflow Dynamics

Airflow beneath rooftop solar panels is vital for maximizing electrical harvest and preserving roof structural integrity at highway cruising speeds (70 mph / 112 km/h):

  1. Convective Cooling Air Gap: Rigid solar modules should be mounted on aluminum crossbars with at least a 1.5-inch to 2.5-inch gap above the van sheet metal. This allows turbulent airflow to cool the panel underside, lowering operating temperatures by up to 20°C and boosting power output by 12% to 18%.
  2. Front Aerodynamic Wind Fairing: At 70 mph, highway wind creates severe aerodynamic lift under leading-edge panels. Installing a 1/8-inch tinted polycarbonate or aluminum wind fairing in front of the forward solar panel prevents structural fatigue and eliminates high-pitch wind whistling.
  3. Parallel Wiring for Shade Resilience: Because roof ventilation fans and air conditioner cowlings cast inevitable shadows across panels during morning and late afternoon hours, wiring modules in parallel ensures that shaded cells do not bottleneck unshaded modules.
Class B RV rooftop solar array mounting showcasing aluminum crossbars and aerodynamic clearances
Figure 3: Heavy-duty aluminum crossbar mounting system securing rigid solar modules to factory roof tracks with aerodynamic wind mitigation. Source: Wikimedia Commons. License: CC BY-SA 4.0.

4. Lithium Low-Temperature Protection & Enclosure Safety

Lithium Iron Phosphate (LiFePO4) chemistry represents the gold standard for Class B vans due to its lightweight footprint (saving 150+ lbs over lead-acid) and sustained high-current delivery. However, lithium cells must be protected against sub-freezing temperatures:

  • Never Charge Below Freezing: Charging a LiFePO4 battery below 0°C (32°F) causes irreversible lithium plating on the cell anode, permanently destroying storage capacity and causing internal short circuits.
  • Internal Heated Cell Packs: Premium batteries feature built-in silicone heating elements that draw incoming charge current from the solar controller or alternator to warm the cell core above 5°C (41°F) before allowing current into the chemistry.
  • Interior Enclosure Location: House batteries should always be positioned inside the insulated, heated cabin envelope (typically beneath the rear bed platform or dinette seat), never in an uninsulated under-chassis exterior box. Per National Electrical Code standards (NEC Article 551 for Recreational Vehicles and NEC Article 706 for Energy Storage Systems), battery enclosures must provide mechanical protection, overcurrent fusing within 7 inches of positive terminals, and thermal isolation to comply with NFPA safety codes.

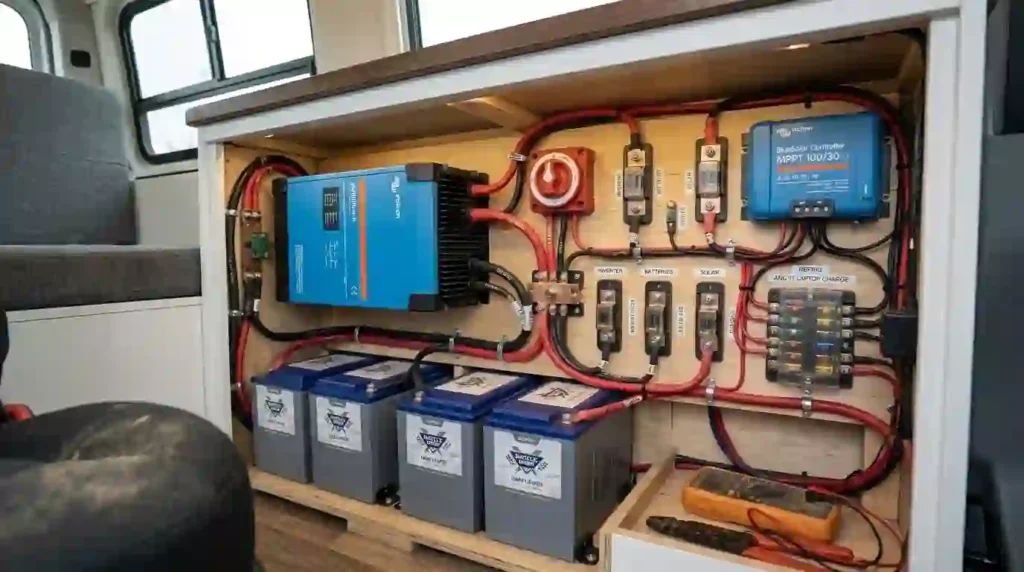

Auxiliary deep cycle leisure battery and smart DC to DC alternator charger installed inside campervan enclosure
Figure 4: Interior auxiliary battery compartment housing deep-cycle lithium storage, smart DC-DC alternator charging, and high-interrupt-capacity overcurrent fusing. Source: Wikimedia Commons. License: CC BY-SA 4.0.

Simulate Your Class B Van Solar Setup

Model your daily campervan watt-hours, chassis roof panel capacity, alternator DC-DC charge rate, and lithium battery requirements instantly.

⚑ Launch Free Van Sizing Calculator →

Interactive Class B Van Solar Planning Calculator

Class B Campervan Electrical Sizing Simulator

Simulate your daily campervan electrical consumption, calculate required roof solar wattage, and determine DC-DC alternator charge yield.





Recommended System Configuration

Roof Solar Capacity
400 W
Fits Sprinter 144″ easily
LiFePO4 Battery Bank
200 Ah
2.56 kWh Storage
Alternator Charger
40 A
810 Wh / drive day
Verified Hardware Benchmark
Direct Amazon Link
Victron Energy Orion-Tr Smart 12/12-30A Isolated DC-DC Charger

Essential component for Class B campervan electrical systems. Delivers safe, regulated 30-amp multi-stage charging from the engine alternator to house lithium batteries while driving, preventing alternator burnout and isolating the starter battery when stopped.

Compatible with Euro 6 smart alternators and 12V LiFePO4 batteries
View on Amazon →

Engineering 5-Step Field SOP: Class B Solar Installation Checklist

Standard Operating Procedure (SOP) Checklist for Class B Van Solar Builds:

  1. Verify Roof Track Torque Specifications: Ensure all unistrut or crossbar channel nuts on Sprinter or ProMaster roof tracks are torqued to manufacturer specifications (typically 18 to 22 ft-lbs) using blue threadlocker to resist road vibration.
  2. Seal Cable Entry Glands with Polyurethane Sealant: Drill roof pass-through holes using step bits, apply zinc-rich cold galvanizing paint to exposed sheet metal edges, and bed the dual-cable entry housing in Sikaflex 221 or 252 adhesive sealant.
  3. Install Ignition D+ Signal Trigger on DC-DC Charger: For smart alternators that modulate voltage down to 12.6V during highway cruising, connect the charger’s remote sensing terminal to an engine-run 12V ignition circuit to ensure continuous charge delivery.
  4. Mount Class-T or MRBF Fuse Within 7 Inches of Battery Post: Under ABYC E-11 regulations, install a high-AIC (20,000A interrupt capacity) fuse directly on the house battery positive terminal before routing cables to the DC distribution block or inverter.
  5. Verify Low-Temperature Lithium Cutoff Operation: Program the MPPT solar controller and DC-DC charger to cut off charge current when the temperature sensor drops below 0°C (32°F), protecting lithium cells from plating damage during winter travel.

Frequently Asked Questions: Class B Van Solar Installation

How much solar can you fit on a Class B campervan roof?
Most high-roof Class B campervans (Sprinter 144″, Transit 148″, or ProMaster 159″) can accommodate 300W to 500W of rigid solar panels alongside a roof vent fan and rooftop air conditioner. Extended wheelbase models (Sprinter 170″ or ProMaster 159″ Extended) with custom low-profile roof racks can squeeze up to 600W to 700W.
Do I need to drill holes in my campervan roof to install solar panels?
For mounting brackets, drilling is often unnecessary. Mercedes Sprinters feature factory roof tracks (C-channels), and Ram ProMasters feature factory roof pin studs that accept no-drill mounting brackets. However, you will need to drill one small hole through the roof sheet metal for the watertight cable entry housing (gland) to route PV wires into the cabin.
Can a Class B campervan run off-grid without shore power?
Yes. By pairing 400W of rooftop solar panels with a 200Ah to 300Ah LiFePO4 battery bank and a 30A to 50A DC-to-DC alternator charger, a Class B van can operate indefinitely off-grid. Solar generates 1,200W to 1,600W on sunny days, while driving just 1 to 2 hours between destinations injects an additional 500W to 1,000W into the batteries.
What size DC-to-DC charger should I install on a Sprinter or Transit?
A 30-amp to 50-amp DC-to-DC charger is the recommended safe limit for factory single-alternator vans. Modern 220A to 250A alternators produce substantial power, but pulling more than 50A continuously at prolonged engine idle causes excess heat buildup in the alternator windings.
Why is a wind fairing recommended for van rooftop solar?
At highway cruising speeds, high-velocity airflow rushing over the windshield gets trapped underneath flat-mounted solar panels, creating severe upward aerodynamic lift, high-pitch wind whistling, and mechanical fatigue on mounting fasteners. An aerodynamic wind deflector diverts airflow smoothly over the top of the panels, eliminating cabin noise and protecting brackets from wind sheer stress.
